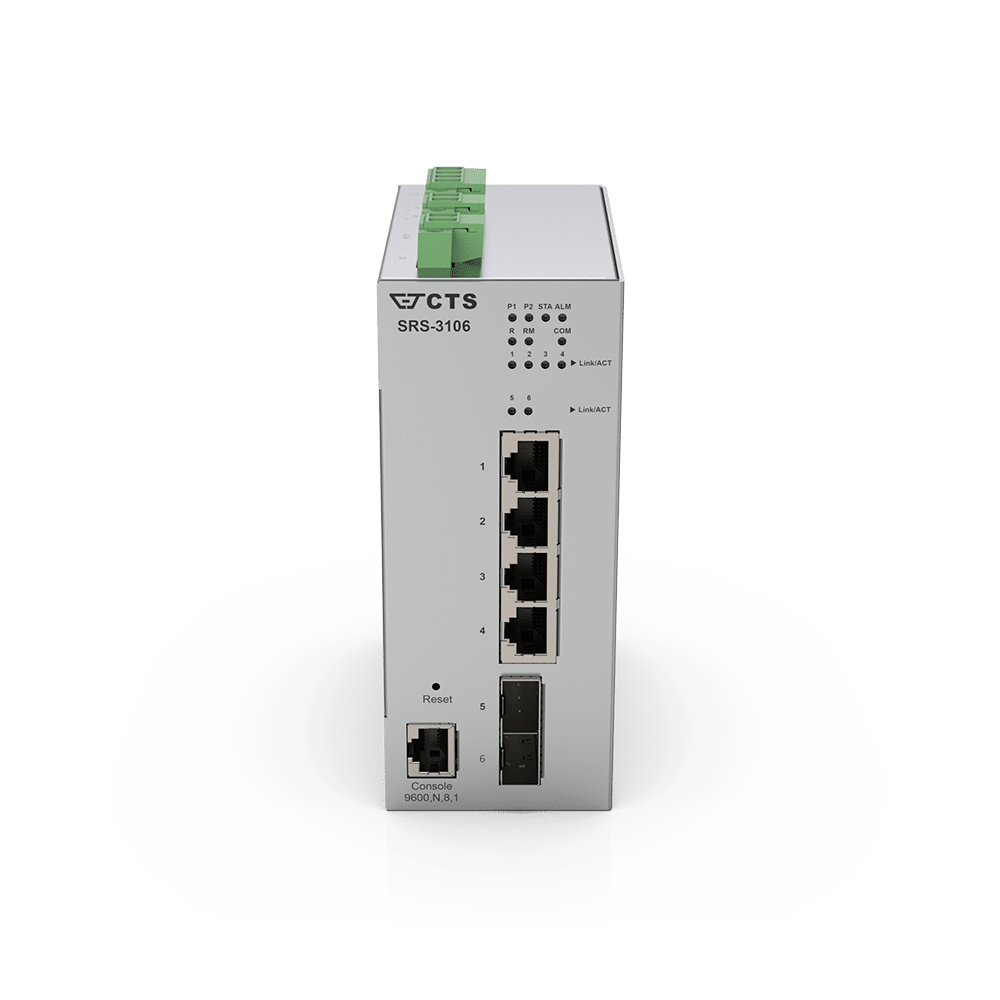

SRS-3106

Rugged Switch

SRS-3106, this 6-port smart rugged managed switch is designed to withstand harsh environmental conditions while delivering resilient network performance. With its wide operational temperature range of -20°C to 60°C, the SRS-3106 is ideal for both indoor and outdoor deployments, ensuring uninterrupted network connectivity even in extreme temperatures.

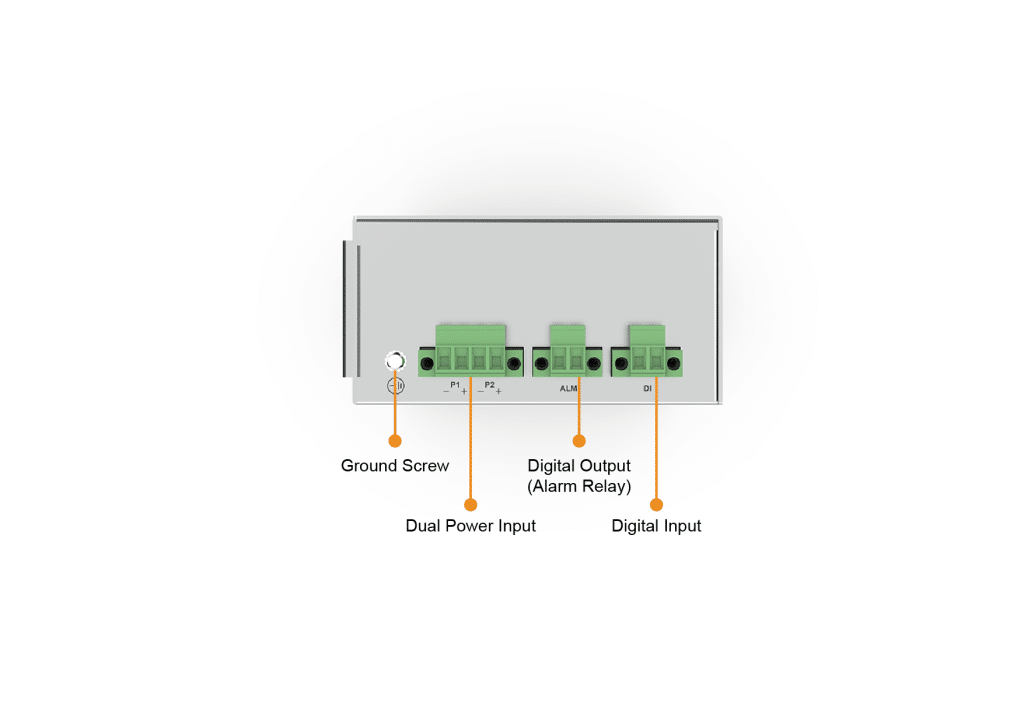

Built for resilience, the SRS-3106 offers a suite of advanced features to protect and enhance your network’s reliability. Dual power input provides redundancy, preventing downtime in case of power failures. Dual rate fiber can automatically sense and adjust to fiber speed changes. Dual image functionality ensures seamless system recovery in case of firmware and software issues. Additionally, loop detection automatically helps prevent network disruptions caused by accidental switching loops. monitoring options. This is facilitated through the DIP switch and LED indicator on its panel. The DIP switch empowers users to control various functions, including Link Alarm, Data-diode, and more

CTSystems
Power Redundancy
Keeps the device working when facing unexpected damage on power modules
CTSystems
Dual Image
Prevents your device to die from firmware upgrade failures
CTSystems
Loop Detection
Automatically prevents the loop events from causing congestion in the network and keeps your service stable
CTSystems
IPv4/IPv6 Dual Stack
Supports both IPv4 and IPv6, saving your costs when transitioning from IPv4 to a IPv6 network
CTSystems
Dual Rate Fiber
Automatically senses and adjusts the fiber speed when changes are made in the network environment, providing a longer lifespan for the product
CTSystems
Intelligent Diagnostics
Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters.
Model
Info
Version
Download File
SRS-3106
Datasheet

A01

CT System Downloads

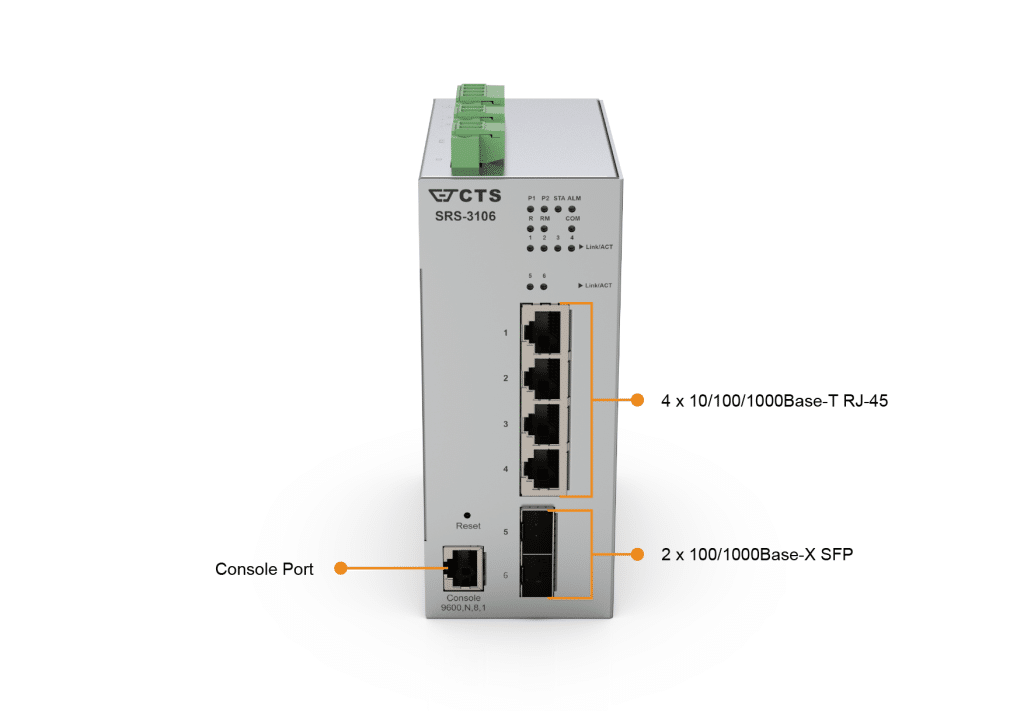

ModelFiber portTP PortPower Source
Speed (Mpbs)TypeSlotSpeed (Mpbs)Port
SRS-3106100/1000SFP210/100/10004Dual 12~57V DC with
4-pin removable terminal block
