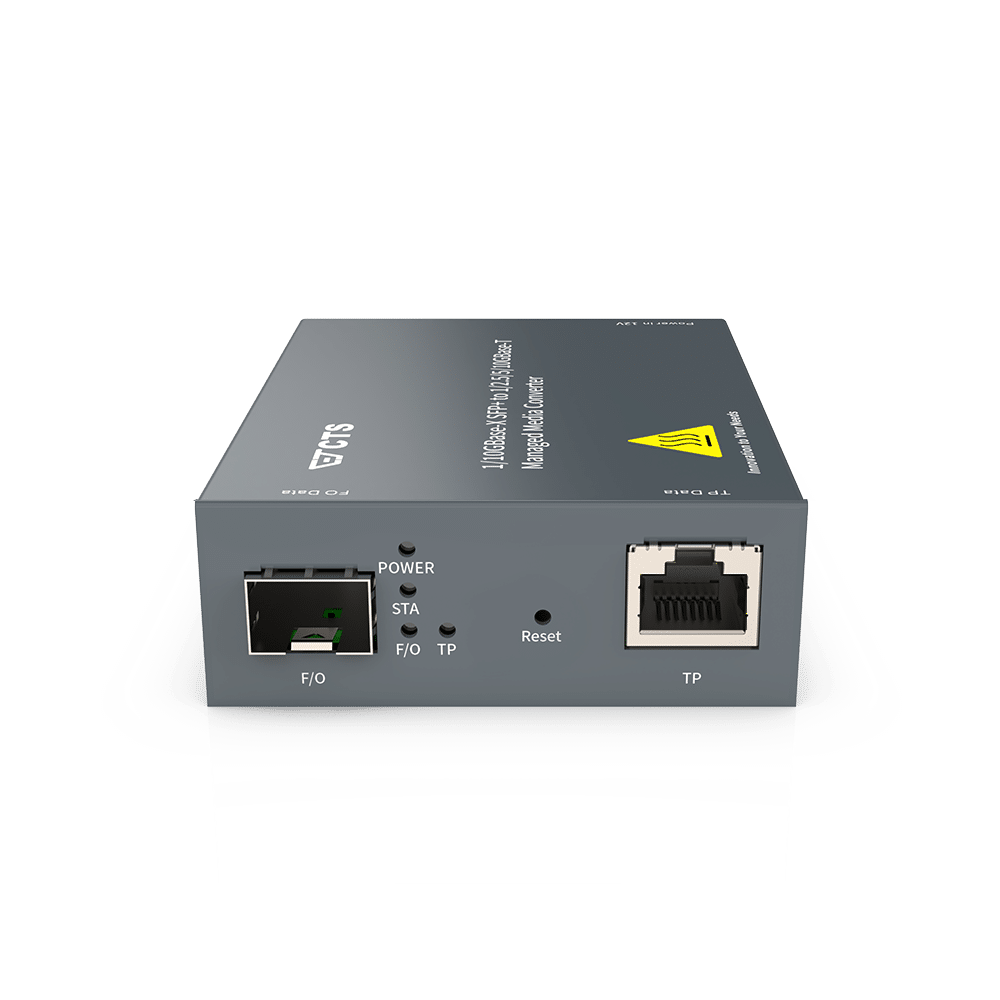

CVT-5002SFP-MG

Standalone Media Converter

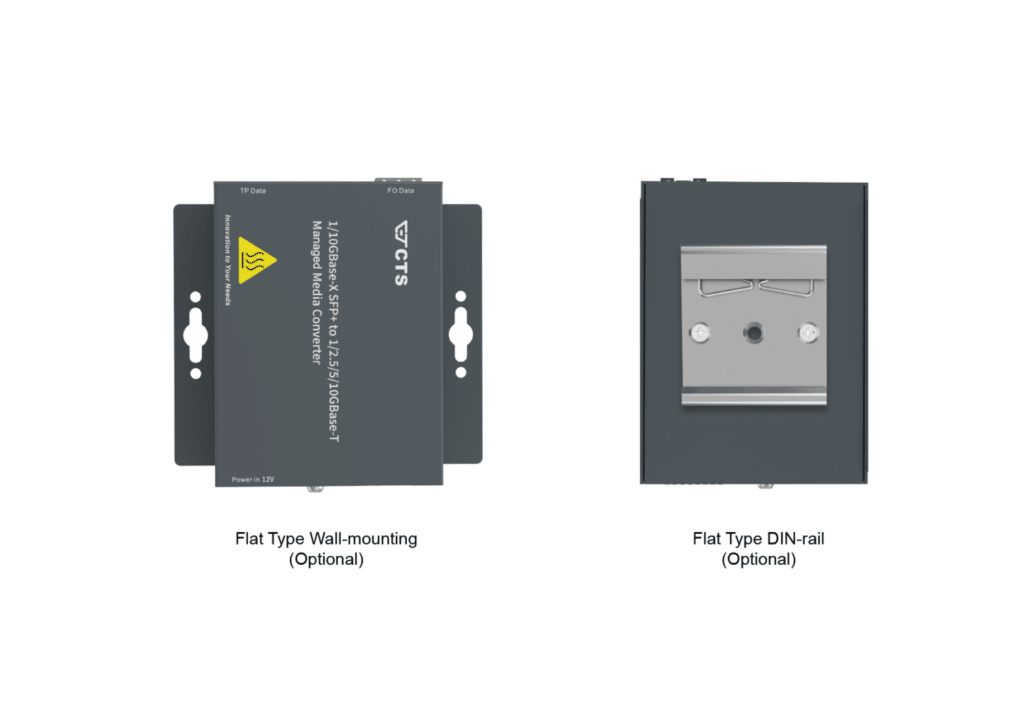

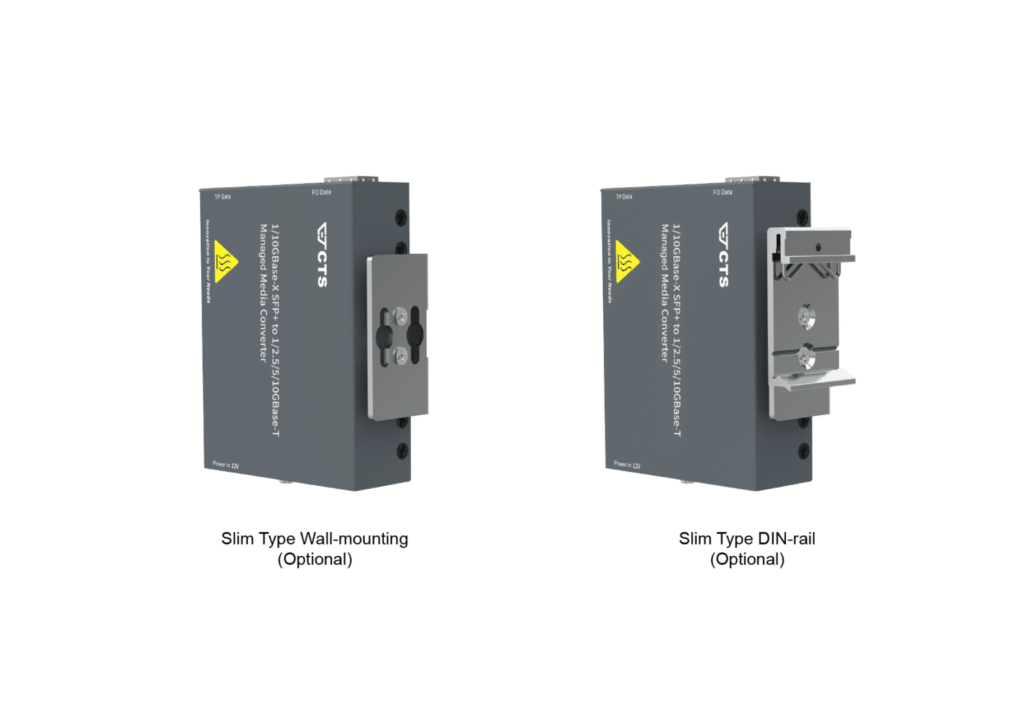

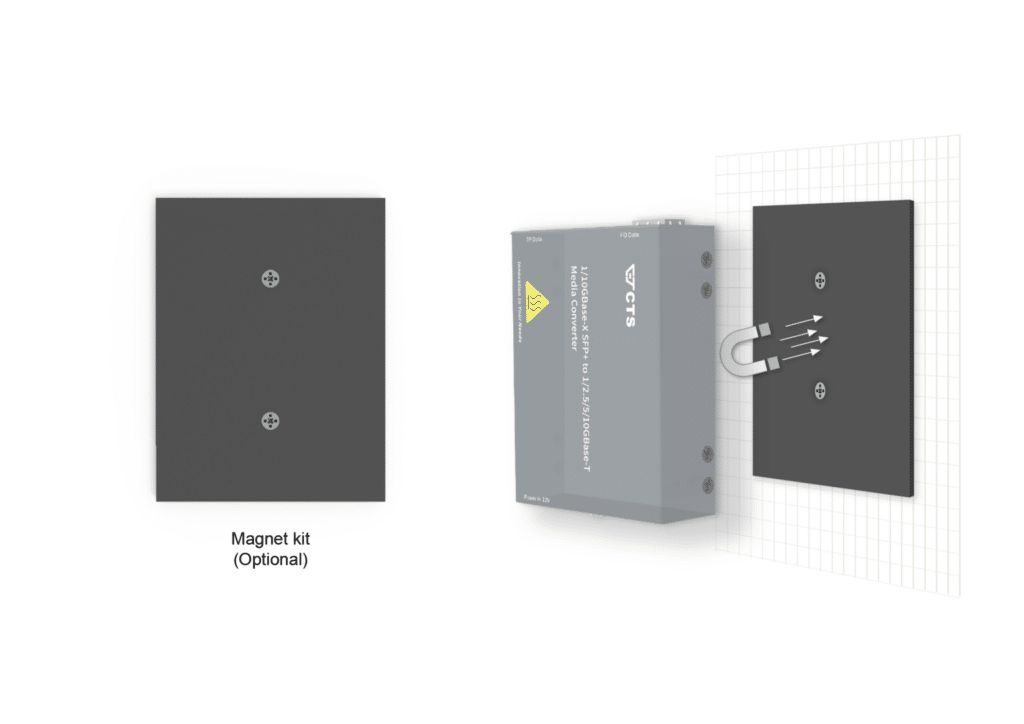

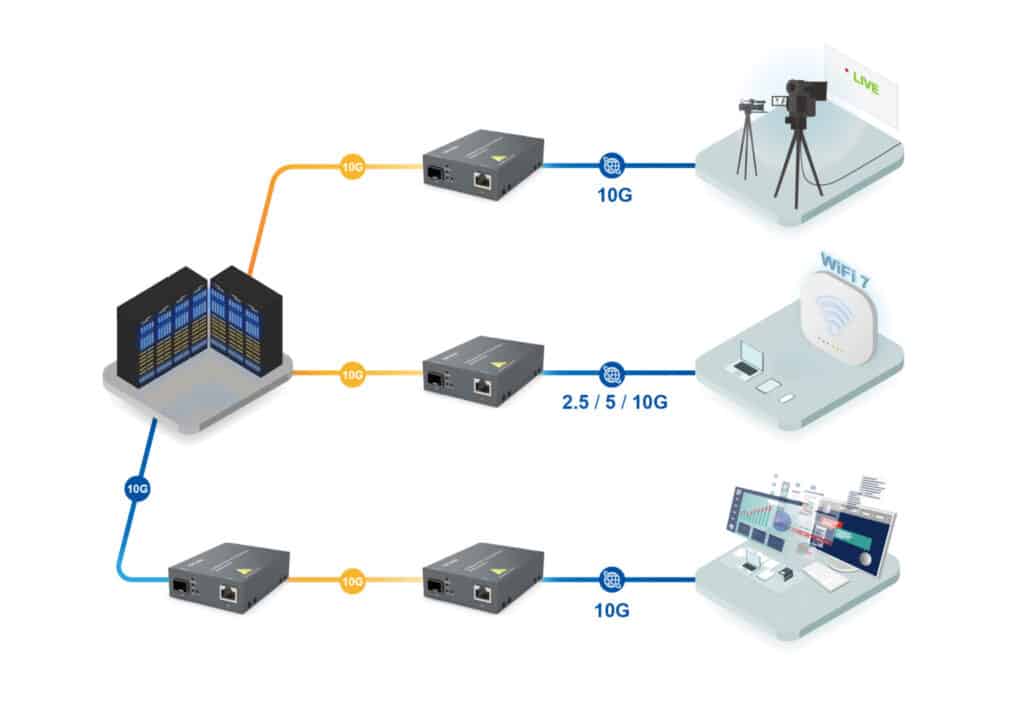

The CVT-5002SFP-MG media converter seamlessly connects 10G fiber and multi-gigabit copper networks. Its plug-and-play design and built-in data diode ensure seamless installation and data security. Notably, this model offers up to 5 types of mounting options for various scenarios.

CTSystems
10G
Supports 10 Gigabit fiber to fiber media conversion
CTSystems
Plug-and-play
Easy installation where complex configurations are not required
CTSystems
Link Alarm
If TP or fiber port is down during operation, the other port will automatically shutdown to alert the user
Model
Info
Version
Download File
CVT-5002SFP-MG
Datasheet

A03

CT System Downloads
CVT-5002SFP-MG
Manual

V1.1

CT System Downloads

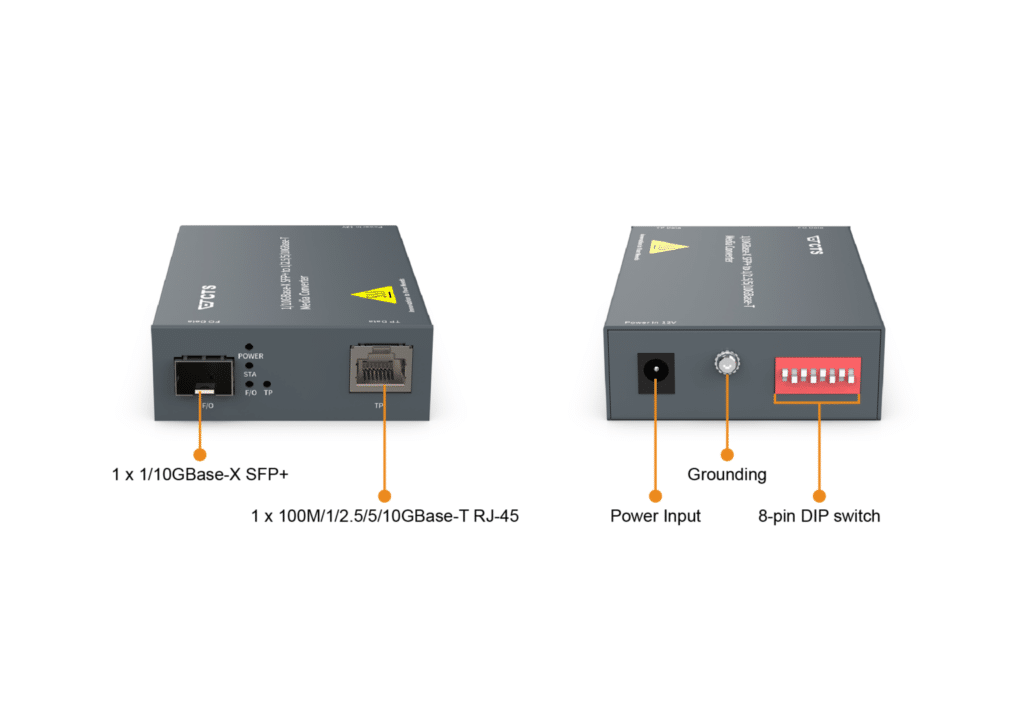

ModelFiber PortTP PortSupport Power Source
SpeedTypePortsSpeedPorts
CVT-5002SFP-MG10/1GbpsSFP+110G/5G/2.5G/1G/100Mbps112 VCD External Power Adapter
